- Drives - Product Lineup
-
Universal Drives
-
CPP-B06V48
CPP-B06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 6 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A06V48
CPP-A06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 15 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A12V80
CPP-A12V80: 12A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 30 Amps (peak of sine)
Continuous Output: 12 Amps (peak of sine)
-
CPP-A24V80
CPP-A24V80: 24A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 60 Amps (peak of sine)
Continuous Output: 24 Amps (peak of sine)
-
CPP-A40V24
CPP-A40V24: 40A 24V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 24 VDC
Peak Output: 100 Amps (peak of sine)
Continuous Output: 40 Amps (peak of sine)
-
CPP-B06V48
-
PRO Series Drives
-
PRO-A04V36-CAN
PRO-A04V36-CAN: 4A 36V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 9 to 36 VDC
Peak Output: 10 Amps (peak of sine)
Continuous Output: 4 Amps (peak of sine)
-
PRO-A08V48-CAN
PRO-A08V48-CAN: 8A 48V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAN
PRO-A10V80A-SA-CAN: 10A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAN
PRO-A20V80A-SA-CAN: 20A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A08V48B-SA-CAT
PRO-A08V48B-SA-CAT: 8A 48V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAT
PRO-A10V80A-SA-CAT: 10A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAT
PRO-A20V80A-SA-CAT: 20A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A04V36-CAN
- PRO Series Evaluation Kit
- Previous Generation Drives
- Integrated Motor Drive
- BLDC
- Housed AC
- Linear Actuator
- PMDC
- Stepper
- Gearmotors / Mobility
- Cable / Harness Solutions
- Rapid Delivery Program
DA43 Drives
CompletePower™ Series
Summary Details
Technology: PMDC Servo-LinearQuadrants: 4
Nominal Current: 3A
For Brush-Commutated Linear PMDC Motors. Up to 75 W.
This servo-amplifier is built into a fully enclosed rugged aluminum case. Mode of operation is set by simple DIP switches. This drive handles a wide range of power supply voltages (from 11 to 70VDC) for a variety of power input requirements. Inputs include current limit, set value input and a ramp function. The drive handles continuous currents up to 3A. The linear power stage is protected against over-current and over-temperature.
Additional Product Details

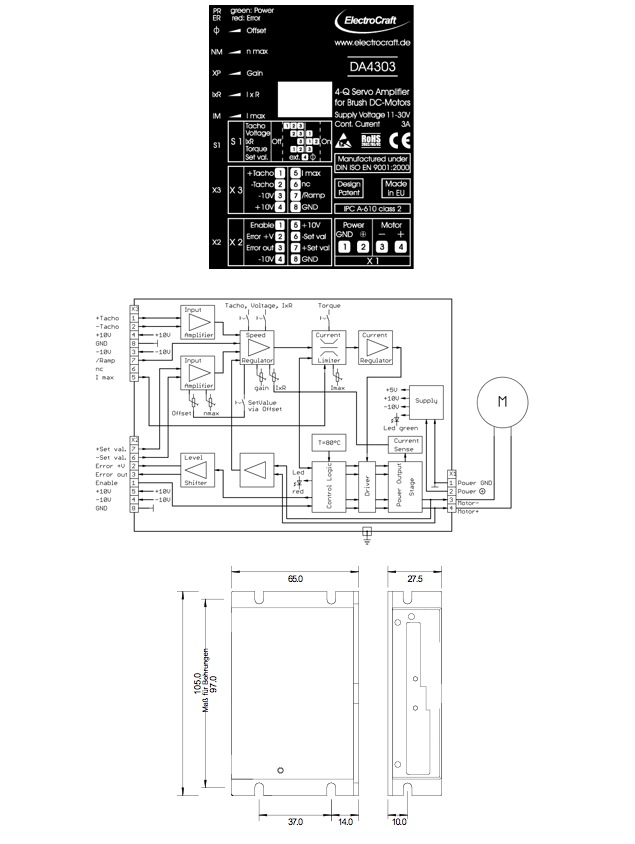

DA43 Technical Drawings

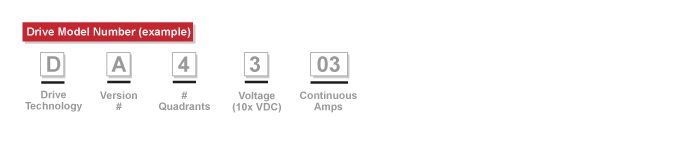

DA43 Specifications
| Model Numbers | Power Supply Voltage (VDC) | Aux Voltage (VDC) | Continuous Current (Amps) | Peak Current (Amps) | Max Power (Watts) | Frequency of Power Output Stage (kHz) | Efficiency (%) |
|---|---|---|---|---|---|---|---|
| DA4303 | 12 - 30 | 5 - 24 | 3 | 3 | 75 with heatsink | - | 95 |
| Control Inputs | |
|---|---|
| Set Value | -10 to +10 VDC |
| Tach (VDC) | ±50V |
| Enable | TTL / +24 VDC |
| Outputs | |
| Auxillary Voltage Sources | 5V/100mA |
| Auxillary Voltage Sources | 10 VDC/20mA |
| Potentiometers | |
| Function of Potentiometers | gain course / gain fine / nmax |
| Mechanical Specs | |
| Dimensions (L x W x H) inches / (mm) | (105) X (65) X (27.5) |
| Mounting Hole Distance (mm) | 97 X 37 |
| Weight in ounces / (grams) | (180) |
| Operating Temperature (°C) | -10 to +45 |
| Storage Temperature (°C) | -40 to +85 |
| Humidity Range Not Condensing (% rH) | 20% to 80% Relative, Non-condensing |
| Operation Mode | |
| Operation Mode | speed-control by Voltage speed-control by DC-tach torque control IxR-compensation |
DA43 Accessories
| Photo | Model | Description | User | Technical |
|---|---|---|---|---|
 | WA2509 | Break Out Board for DA, EA and SA-Series. | Consult | Download |
 | HA2008 | Passive heatsink optimized for DA4303. | Consult | Download |
 | HA2018 | One fan heatsink optimized for DA4303. Fan is 1 x 24VDC, .8W. | Consult | Download |
 | HA2028 | Two fan heatsink optimized for DA4303. Fans are 2 x 24VDC, .8W. | Consult | Download |
 | MA3050 | DIN Rail Mounting Kit for the ASO-BM-70-30 breaking module. | Consult | Download |
 | ASO-BM-70-30 | Breaking module in a rugged aluminum case. | Consult | Download |
 | MA0025 | DIN Rail Mounting Kit for units: DA, EA, and SA-Series. | Consult | Download |
 | CAxxxx | RoHS-compliant CAT5E FTP-Patch-Cable with RJ45 connectors at both ends. Styles available: - Red 50cm [model: CA2005] - Red 100cm [model: CA2010] - Red 200cm [model: CA2020] - Red 300cm [model: CA2030] - Yellow 50cm [model: CA4005] - Yellow 100cm [model: CA4010] - Yellow 200cm [model: CA4020] - Yellow 300cm [model: CA4030] - Gray 50cm [model: CA8005] - Gray 100cm [model: CA8010] - Gray 200cm [model: CA8020] - Gray 300cm [model: CA8030] | Consult | Download |
DA43 User Manuals
| Model Number | User Manual |
|---|---|
| DA4303 | Download PDF (Drive User Manual) |
