Universal Drives
-
CPP-B06V48
CPP-B06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 6 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A06V48
CPP-A06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 15 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A12V80
CPP-A12V80: 12A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 30 Amps (peak of sine)
Continuous Output: 12 Amps (peak of sine)
-
CPP-A24V80
CPP-A24V80: 24A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 60 Amps (peak of sine)
Continuous Output: 24 Amps (peak of sine)
-
CPP-A40V24
CPP-A40V24: 40A 24V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 24 VDC
Peak Output: 100 Amps (peak of sine)
Continuous Output: 40 Amps (peak of sine)
-
CPP-B06V48
-
PRO Series Drives
-
PRO-A04V36-CAN
PRO-A04V36-CAN: 4A 36V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 9 to 36 VDC
Peak Output: 10 Amps (peak of sine)
Continuous Output: 4 Amps (peak of sine)
-
PRO-A08V48-CAN
PRO-A08V48-CAN: 8A 48V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAN
PRO-A10V80A-SA-CAN: 10A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAN
PRO-A20V80A-SA-CAN: 20A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A08V48B-SA-CAT
PRO-A08V48B-SA-CAT: 8A 48V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAT
PRO-A10V80A-SA-CAT: 10A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAT
PRO-A20V80A-SA-CAT: 20A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A04V36-CAN
- PRO Series Evaluation Kit
- Previous Generation Drives
- Integrated Motor Drive
- BLDC
- Housed AC
- Linear Actuator
- PMDC
- Stepper
- Gearmotors / Mobility
- Cable / Harness Solutions
- Rapid Delivery Program
DA47 Drives
CompletePower™ Series
Summary Details
Technology: PMDC Servo-PWMQuadrants: 4
Nominal Current: 9A and 18A
For Brush-Commutated PMDC Motors. Up to 1260 W.
This servo-amplifier is built into a fully enclosed rugged aluminum case. Mode of operation is set by simple DIP switches. This drive handles a wide range of power supply voltages (from 11 to 70VDC) for a variety of power input requirements. Inputs include current limit, set value input, enable, tach and a ramp function. The drive handles continuous currents up to 9 and 18A. The pulse-width modulated power stage utilizes 95% efficient MOSFET-technology and is protected against over-current and over-temperature.
Additional Product Details

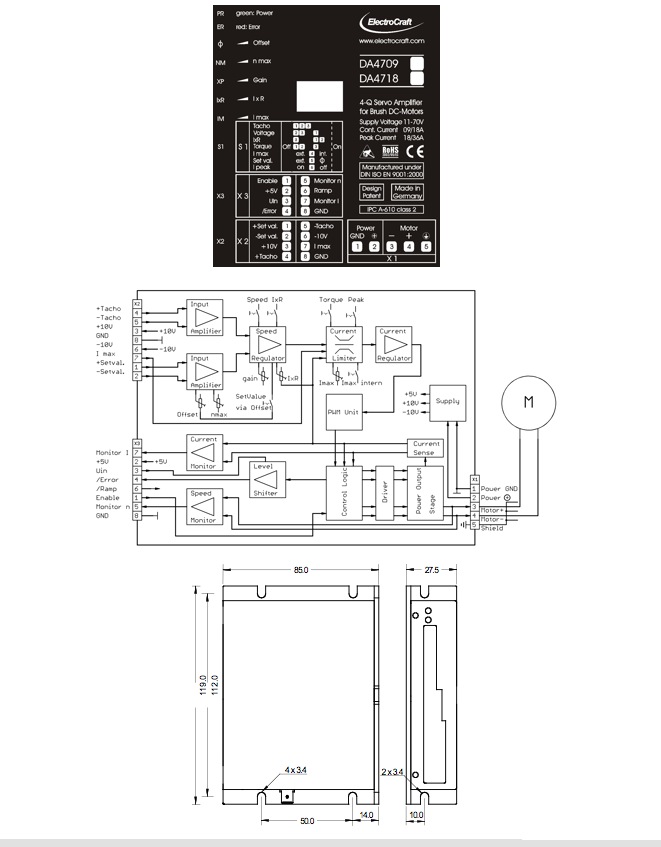

DA47 Technical Drawings

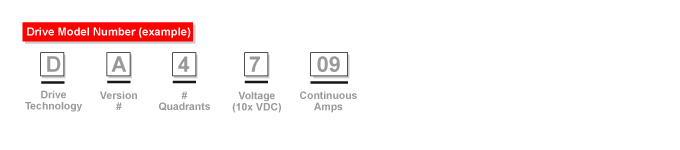

DA47 Specifications
| Model Numbers | Power Supply Voltage (VDC) | Aux Voltage (VDC) | Continuous Current (Amps) | Peak Current (Amps) | Max Power (Watts) | Frequency of Power Output Stage (kHz) | Efficiency (%) |
|---|---|---|---|---|---|---|---|
| DA4709 | 11 - 70 | 5 - 24 | 9 | 18 | 630 with heatsink | 50 | 95 |
| DA4718 | 11 - 70 | 5 - 24 | 18 | 36 | 1260 with heatsink | 50 | 95 |
| Control Inputs | |
|---|---|
| Set Value | -10 to +10 VDC |
| Tach (VDC) | ±10V |
| Enable | TTL / +24 VDC |
| Ramp | TTL / +24 VDC |
| Imax (VDC) | 0 to 10 |
| Features Selected by Dip Switches | |
| Vmode, IxR-mode, I-mode | Not set/set |
| Imax | ext / int |
| Set value via Offset | offset/ext |
| Ipeak | on/off |
| Outputs | |
| Auxillary Voltage Sources | 5V/50mA |
| Auxillary Voltage Sources | 10 VDC/20mA |
| Monitor I | 0.5V/1A |
| Monitor n | .1V/1Vmotor |
| Error | open collector / push pull / TTL / 24V |
| Display | |
| LEDs | green = power / red = error |
| Potentiometers | |
| Function of Potentiometers | offset / nmax / gain / IxR / Imax |
| Mechanical Specs | |
| Dimensions (L x W x H) inches / (mm) | (119) X (85) X (27.5) |
| Mounting Hole Distance (mm) | 112 X 50 |
| Weight in ounces / (grams) | (220) |
| Operating Temperature (°C) | -10 to +45 |
| Storage Temperature (°C) | -40 to +85 |
| Humidity Range Not Condensing (% rH) | 20% to 80% Relative, Non-condensing |
| Operation Mode | |
| Operation Mode | speed-control by Voltage speed-control by DC-tach torque control IxR-compensation |
DA47 Accessories
| Photo | Model | Description | User | Technical |
|---|---|---|---|---|
 | WA2509 | Break Out Board for DA, EA and SA-Series. | Consult | Download |
 | MA3050 | DIN Rail Mounting Kit for the ASO-BM-70-30 breaking module. | Consult | Download |
 | HA3008 | Passive heatsink optimized for SA45, EA27, EA47 and DA47 drives. | Consult | Download |
 | HA3018 | One fan heatsink optimized for SA45, EA27, EA47 and DA47 drives. Fan is 1 x 24VDC, .8W. | Consult | Download |
 | HA3028 | Two fan heatsink optimized for SA45, EA27, EA47 and DA47 drives. Fans are 2 x 24VDC, .8W. | Consult | Download |
 | ASO-BM-70-30 | Breaking module in a rugged aluminum case. | Consult | Download |
 | CAxxxx | RoHS-compliant CAT5E FTP-Patch-Cable with RJ45 connectors at both ends. Styles available: - Red 50cm [model: CA2005] - Red 100cm [model: CA2010] - Red 200cm [model: CA2020] - Red 300cm [model: CA2030] - Yellow 50cm [model: CA4005] - Yellow 100cm [model: CA4010] - Yellow 200cm [model: CA4020] - Yellow 300cm [model: CA4030] - Gray 50cm [model: CA8005] - Gray 100cm [model: CA8010] - Gray 200cm [model: CA8020] - Gray 300cm [model: CA8030] | Consult | Download |
 | MA0025 | DIN Rail Mounting Kit for units: DA, EA, and SA-Series. | Consult | Download |
 | IA210x | Choke module optimized for brushless drives. Inductance: IA2100 = 2x50uH; IA2101 = 2x100uH Nominal current: 10A | Consult | Download |
DA47 User Manuals
| Model Number | User Manual |
|---|---|
| DA4709 | Download PDF (Drive User Manual) |
| DA4718 | Download PDF (Drive User Manual) |
