SCA-B4-70 Drives
CompletePower™ Series

Summary Details

Technology: Brushless Servo
Quadrants: 4
Nominal Current: 10A or 30A

For Brushless Motors. Up to 2100 W.
This four-quadrant brushless DC servo amplifier is fully enclosed in a rugged aluminum case which can be panel mounted or DIN-rail mounted for easy integration. The drive can be configured in a variety of torque and speed control modes with the mode of operation being set by simple jumpers. Both the 10 A and 30 A versions of this drive have an adjustable current limit and can be powered by the same 11 - 70 VDC range of supply voltage. The drive is protected against over-current and over-temperature and motor short-circuit and incorporates state of the art MOSFET technology for maximum efficiency. Connectivity is achieved with simple screw-terminals for control/feedback inputs, supply power and motor connections.

Additional Product Details

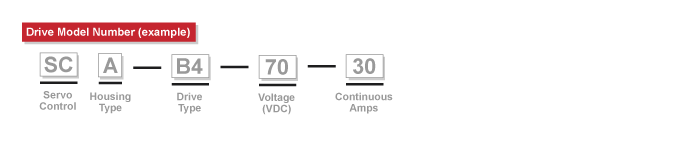

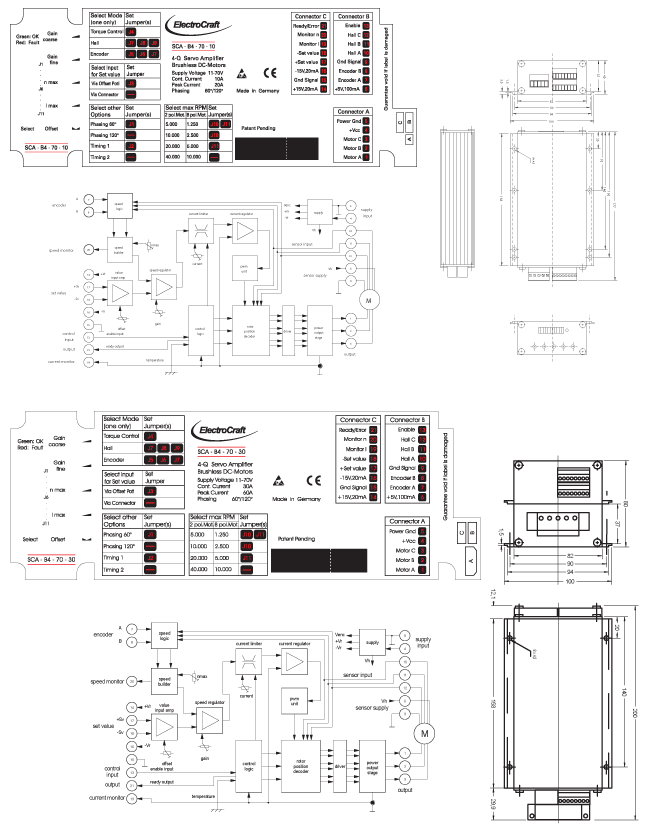

SCA-B4-70 Technical Drawings


SCA-B4-70 Specifications

Model Numbers Power Supply Voltage
(VDC)		 Aux Voltage
(VDC)		 Continuous Current
(Amps)		 Peak Current
(Amps)		 Max Power
(Watts)		 Frequency of
Power Output Stage
(kHz)		 Efficiency
(%)
SCA-B4-70-10 11 - 70 5 - 24 10 20 700 with heatsink 49 95
SCA-B4-70-30 11 - 70 5 - 24 30 60 2100 with heatsink 49 95

Control Inputs
Set Value -10 to +10 VDC
Encoder input signals channel A,B / TTL / max 100 kHz
Enable 8 to 30
Outputs
Auxillary Voltage Sources 5V/100mA
Auxillary Voltage Sources 15 VDC/20mA
Monitor I 0.25V/.16A
Monitor n 10VDC/nmax
Error open collector max 30VDC
Display
LEDs green = ok / red = fault
Potentiometers
Function of Potentiometers gain course / gain fine / nmax
Mechanical Specs
Dimensions (L x W x H) inches / (mm) SCA-B4-70-10: 7.09 x 3.94 x 1.57 / (180) x (100) x (40)
SCA-B4-70-30: 7.87 x 3.94 x 3.15 / (200) x (100) x (80)
Mounting Hole Distance (mm) 120 X 90
Weight in ounces / (grams) SCA-B4-70-10: 20.46 (580)
SCA-B4-70-30: 40.56 (1150)
Operating Temperature (°C) -10 to +45
Storage Temperature (°C) -40 to +85
Humidity Range Not Condensing (% rH) 20% to 80% Relative, Non-condensing
Operation Mode
Operation Mode speed-control by hall
speed-control by encoder
torque control

SCA-B4-70 Accessories

Photo Model Number Description User Manual Technical Drawing
$photo ASO-BM-70-30 Breaking module in a rugged aluminum case. Consult Factory Download PDF
$photo IA310x Choke module optimized for brushless drives.
Inductance: IA3100 = 3x50uH; IA3101 = 3x100uH
Nominal current: 10A		 Consult Factory Download PDF
$photo ASX-RM-01-01 Aluminum DIN Rail Mounting Kit with L-shaped bracket for units:
- SCA-Lx
- SCA-Sx
- SCA-B4-70-10
- not used for SCA-SS-70-30		 Consult Factory Download PDF

SCA-B4-70 User Manuals

Model Number User Manual
SCA - B4 - 70 - 10 Download PDF (Drive User Manual)
SCA - B4 - 70 - 30 Download PDF (Drive User Manual)
