Universal Drives
-
CPP-B06V48
CPP-B06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 6 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A06V48
CPP-A06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 15 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A12V80
CPP-A12V80: 12A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 30 Amps (peak of sine)
Continuous Output: 12 Amps (peak of sine)
-
CPP-A24V80
CPP-A24V80: 24A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 60 Amps (peak of sine)
Continuous Output: 24 Amps (peak of sine)
-
CPP-A40V24
CPP-A40V24: 40A 24V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 24 VDC
Peak Output: 100 Amps (peak of sine)
Continuous Output: 40 Amps (peak of sine)
-
CPP-B06V48
-
PRO Series Drives
-
PRO-A04V36-CAN
PRO-A04V36-CAN: 4A 36V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 9 to 36 VDC
Peak Output: 10 Amps (peak of sine)
Continuous Output: 4 Amps (peak of sine)
-
PRO-A08V48-CAN
PRO-A08V48-CAN: 8A 48V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAN
PRO-A10V80A-SA-CAN: 10A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAN
PRO-A20V80A-SA-CAN: 20A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A08V48B-SA-CAT
PRO-A08V48B-SA-CAT: 8A 48V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAT
PRO-A10V80A-SA-CAT: 10A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAT
PRO-A20V80A-SA-CAT: 20A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A04V36-CAN
- PRO Series Evaluation Kit
- Previous Generation Drives
- Integrated Motor Drive
- BLDC
- Housed AC
- Linear Actuator
- PMDC
- Stepper
- Gearmotors / Mobility
- Cable / Harness Solutions
- Rapid Delivery Program

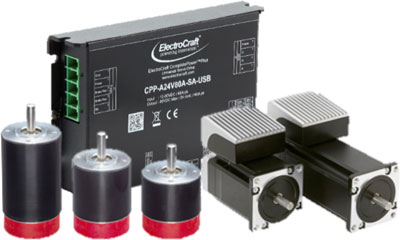

Motor and Drive Compatibility
Brushless DC Motors
PMDC Motors
Stepper Motors
Linear Actuators
Please contact ElectroCraft if the motor you are searching for is not included in the charts below.
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| RPX, LRPX | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
|
RPX16-005V12 | RPX16-005V12 | TBD | TBD | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| RPX16-005V24 | TBD | TBD | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| RPX16-005V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| LRPX16-005V12 | TBD | TBD | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX16-005V24 | TBD | TBD | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX16-005V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| RPX16-007V12 | TBD | TBD | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| RPX16-007V24 | TBD | TBD | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| RPX16-007V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| RPX22-042V12 | 5.0 | 10.8 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| RPX22-042V24 | 2.5 | 5.5 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| RPX22-042V48 | 1.3 | 2.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| LRPX22-042V12 (3:1 to 66:1) | 3.5 | 5.0 to 10.8 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX22-042V12 (81:1 ) | 3.2 | 4.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| LRPX22-042V12 (94:1 to 624:1) | 0.7 to 2.8 | 0.9 to 3.5 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX22-042V24 (3:1 to 19:1) | 1.8 | 5.5 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| LRPX22-042V24 (27:1 to 624:1) | 0.4 to 1.8 | 0.4 to 4.2 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX22-042V48 (3:1 to 624:1) | 0.2 to 0.9 | 0.2 to 2.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| RPX22-062V12 | 7.2 | 18.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| RPX22-062V24 | 3.6 | 9.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX22-062V48 | 1.9 | 4.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX32-090V12 | 7.6 | 23.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX32-090V24 | 3.8 | 11.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| RPX32-090V48 | 1.9 | 5.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX32-090V12 (3:1 to 19:1) | 4.2 | 23.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| LRPX32-090V12 (24:1 to 28:1) | 4.2 | 16.6 to 19.6 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| LRPX32-090V12 (33:1) | 4.2 | 14.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| LRPX32-090V12 (50:1 to 60:1) | 4.2 | 15.5 to 18.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| LRPX32-090V12 (76:1) | 4.2 | 12.1 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| LRPX32-090V12 (90:1 to 192:1) | 4.0 to 4.2 | 4.8 to 10.2 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX32-090V12 (246:1 to 291:1) | 2.9 to 3.4 | 3.5 to 4.2 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| LRPX32-090V12 (344:1 to 999:1) | 0.8 to 2.5 | 0.9 to 3.0 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX32-090V24 (3:1 to 19:1) | 2.1 | 11.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| LRPX32-090V24 (24:1 to 28:1) | 2.1 | 8.3 to 9.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX32-090V24 (33:1 to 107:1) | 2.1 | 4.3 to 7.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| LRPX32-090V24 (116:1 to 999:1) | 0.4 to 2.1 | 0.5 to 4.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX32-090V48 (3:1 to 24:1) | 1.1 | 4.9 to 5.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX32-090V48 (192:1 to 999:1) | 0.2 to 1.0 | 0.2 to 4.1 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| RPX32-150V12 | 12.6 | 36.8 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX32-150V24 | 6.7 | 19.6 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| RPX32-150V48 | 3.3 | 9.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX40-125V12 | 6.6 | 19.7 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| RPX40-125V24 | 3.3 | 9.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX40-125V48 | 1.6 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX40-250V12 | 10.9 | 33.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX40-250V24 | 5.5 | 16.7 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| RPX40-250V48 | 2.7 | 8.3 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX40-250V12 (3:1 to 63:1) | 6.8 | 21.6 to 33.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| LRPX40-250V12 (69:1 to 93:1) | 6.8 | 14.4 to 19.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| LRPX40-250V12 (103:1 to 126:1) | 6.8 | 10.7 to 13.1 | 12 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
| LRPX40-250V12 (170:1 to 232:1) | 4.3 to 5.3 | 6.4 to 7.9 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| LRPX40-250V12 (257:1 to 346:1) | 2.9 to 3.9 | 4.3 to 5.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX40-250V12 (383:1 to 941:1) | 1.1 to 2.6 | 1.6 to 3.9 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX40-250V24 (3:1 to 46:1) | 3.4 | 14.5 to 16.7 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| LRPX40-250V24 (57:1 to 63:1) | 3.4 | 10.8 to 11.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| LRPX40-250V24 (69:1 to 126:1) | 3.4 | 5.4 to 9.7 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX40-250V24 (170:1 to 941:1) | 0.5 to 2.6 | 0.8 to 4.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| LRPX40-250V48 (3:1 to 76:1) | 1.7 | 4.4 to 8.3 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| LRPX40-250V48 (93:1 to 941:1) | 0.3 to 1.7 | 0.4 to 3.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| RPX40-325V12 | 10.2 | 31.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX40-325V24 | 5.1 | 15.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| RPX40-325V48 | 2.6 | 7.7 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| RPX52-300V12 | 20.0 | 36.8 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A40V24A | ||
| RPX52-300V24 | 10.0 | 17.4 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX52-300V48 | 5.0 | 8.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| RPX52-600V12 | 24.0 | 56.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A40V24A | ||
| RPX52-600V24 | 12.0 | 26.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| RPX52-600V48 | 6.0 | 12.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| RPX52-750V24 | 14.1 | 55.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A40V24A | ||
| RPX52-750V48 | 7.1 | 28.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A24V80A | ||
Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| RapidPower - RP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
 |
RP17-12V24 | RP17M-8V24 | 4.2 | 7.6 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A |
| RP17-12V48 | RP17M-8V48 | 2.1 | 3.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| RP17-12V60 | RP17M-8V60 | 1.7 | 3.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
| RP17-22V24 | RP17M-16V24 | 3.6 | 9.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP17-22V48 | RP17M-16V48 | 1.8 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP17-22V60 | RP17M-16V60 | 1.4 | 3.9 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
| RP17-36V24 | RP17M-25V24 | 3.7 | 10.4 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP17-36V48 | RP17M-25V48 | 1.4 | 5.2 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP17-36V60 | RP17M-25V60 | 1.4 | 4.2 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
| RP17-45V24 | RP17M-32V24 | 3.6 | 10.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| RP17-45V48 | RP17M-32V48 | 1.8 | 5.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP17-45V60 | RP17M-32V60 | 1.4 | 4.4 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
| RP23-26V12 | RP23M-18V12 | 5.3 | 11.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| RP23-26V24 | RP23M-18V24 | 4.6 | 9.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| RP23-26V48 | RP23M-18V48 | 2.6 | 6.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP23-34V12 | RP23M-24V12 | 8.6 | 17.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP23-34V24 | RP23M-24V24 | 4.5 | 10.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| RP23-34V48 | RP23M-24V48 | 2.5 | 7.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
| RP23-54V12 | RP23M-38V12 | 8.7 | 15.9 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP23-54V24 | RP23M-38V24 | 5.7 | 18.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| RP23-54V48 | RP23M-38V48 | 4.2 | 11.1 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| RP23-73V24 | RP23M-52V24 | 8.3 | 25.3 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP23-73V48 | RP23M-52V48 | 4.7 | 14.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| RP34-112V24 | RP34M-79V24 | 24.4 | 85.2 | 24 | N/A | N/A | CPP-A40V24A | |
| RP34-112V48 | RP34M-79V48 | 12.1 | 42.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP34-112V90 | RP34M-79V90 | 6.1 | 21.2 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP34-217V24 | RP34M-153V24 | 22.3 | 76.0 | 24 | N/A | N/A | CPP-A40V24A | |
| RP34-217V48 | RP34M-153V48 | 16.9 | 59.1 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP34-217V90 | RP34M-153V90 | 8.9 | 31.1 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP34-313V24 | RP34M-221V24 | 22.7 | 68.1 | 24 | N/A | N/A | CPP-A40V24A | |
| RP34-313V48 | RP34M-221V48 | 17.0 | 59.5 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| RP34-313V90 | RP34M-221V90 | 11.3 | 39.7 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms. Maximum output voltage = 80VDC
Note2: CPP-A24V80A maximum continuous & peak currents = 17Arms & 42.4Arms. Maximum output voltage = 80VDC
Note3: CPP-A40V24A maximum continuous & peak currents = 28.3Arms & 70.7Arms. Maximum output voltage = 24VDC
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| RapidPower Plus - RPP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
 |
RPP23-64V48 | RPP23M-45V48 | 3.0 | 11.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A |
| RPP23--98V48 | RPP23M-69V48 | 4.5 | 15.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| RPP23-118V48 | RPP23-83V48 | 6.0 | 20.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| RPP23-154V48 | RPP23M-108V48 | 7.3 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| MPW | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
|
MPW52-300V24 | MPW52-300V24 | 6.4 | 17.4 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A |
| MPW52-300V48 | 3.4 | 8.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V80A | ||
| MPW52-600V24 | 11.4 | 26.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| MPW52-600V48 | 5.6 | 12.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| MPW86-120V24 (10:1) | 22.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | ||
| MPW86-120V48 (10:1) | 15.0 | 40.0 | 48 | N/A | N/A | CPP-A24V80A | ||
| MPW86-185V24 (10:1) | 30.0 | 73.0 | 24 | N/A | N/A | CPP-A40V24A | ||
| MPW86-185V48 (10:1) | 16.0 | 29.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| MPW86-120V24 (20:1) | 21.0 | 47.0 | 24 | N/A | N/A | CPP-A40V24A | ||
| MPW86-120V48 (20:1) | 13.0 | 23.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| MPW86-185V24 (20:1) | 24.0 | 43.0 | 24 | N/A | N/A | CPP-A40V24A | ||
| MPW86-185V48 (20:1) | 10.0 | 17.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
Note: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
| Motor Series | Motor P/N | Cont Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||
|---|---|---|---|---|---|---|---|
| MP, MPP, MPS | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
|
All MP24, MP26, MP36 (24V windings, all ratios) | up to 25.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A |
| All MPP24, MPP26, MPP36 (24V windings, all ratios) | up to 30.0 | 100.0 | 24 | N/A | N/A | CPP-A40V24A | |
| MPS Series (24V windings, all models) | up to 28.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | |
Note: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| DirectPower - DP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
 |
DP20-10V12 | DP20M-07V12 | 3.8 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A |
| DP20-10V24 | DP20M-07V24 | 1.9 | 5.7 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | |
| DP20-15V12 | DP20M-11V12 | 4.0 | 13.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| DP20-15V24 | DP20M-11V24 | 2.0 | 6.7 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | |
| DP20-20V12 | DP20M-14V12 | 4.3 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| DP20-20V24 | DP20M-14V24 | 2.1 | 2.7 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| DP25-30V12 | DP25M-21V12 | 9.0 | 32.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DP25-30V24 | DP25M-21V24 | 5.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DP25-35V24 | DP25M-25V24 | 5.0 | 20.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DP25-45V12 | DP25M-32V12 | 8.0 | 30.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DP25-45V24 | DP25M-32V24 | 4.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DP30-60V12 | 9.0 | 27.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| DP30-60V24 | 4.0 | 14.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| DP30-75V12 | 7.0 | 14.0 | 12 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
| DP30-75V24 | 3.0 | 7.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| DP30-85V12 | 5.0 | 15.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| DP30-85V24 | 3.0 | 6.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
Note: PRO-A20V80A maximum peak current = 28.2Arms
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| DirectPower Plus - DPP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
 |
DPP240(T)-29V48 | DPP240M(T)-20V48 | 2.0 | 16.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A |
| DPP240(T)-29V60 | DPP240M(T)-20V60 | 2.0 | 14.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | |
| DPP242(T)-44V48 | DPP242M(T)-31V48 | 4.0 | 27.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP242(T)-44V60 | DPP242M(T)-31V60 | 3.0 | 21.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DPP243(T)-52V48 | DPP243M(T)-36V48 | 5.0 | 32.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP243(T)-52V60 | DPP243M(T)-36V60 | 4.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP642(T)-100V48 | DPP642M(T)-70V48 | 6.0 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP642(T)-100V60 | DPP642M(T)-70V60 | 5.0 | 20.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DPP643(T)-165V48 | DPP643M(T)-116V48 | 6.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP643(T)-165V60 | DPP643M(T)-116V60 | 6.0 | 23.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP644(T)-210V48 | DPP644M(T)-148V48 | 7.0 | 28.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP644(T)-210V60 | DPP644M(T)-148V60 | 5.0 | 22.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP681(T)-90V48 | DPP681M(T)-64V48 | 7.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP681(T)-90V60 | DPP681M(T)-64V60 | 6.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP701-150V60 | DPP701M-106V60 | 4.0 | 27.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
Note: PRO-A20V80A maximum peak current = 28.2Arms
| Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|---|
| Hansen PMDC | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
|
111-2121623 | 111-2121623 | 1.1 | 2.0 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| 111-2123223 | 1.8 | 4.9 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| 111-2124823 | 1.9 | 7.8 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 111-2241623 | 0.5 | 1.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 111-2243223 | 0.7 | 2.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 111-2244823 | 1.0 | 3.9 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 116-1121627 | 1.7 | 3.7 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 116-1123227 | 2.2 | 8.4 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1124827 | 2.8 | 13.3 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| 116-1241627 | 0.9 | 2.1 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 116-1243227 | 1.2 | 4.6 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| 116-1244827 | 1.5 | 9.1 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1121632 | 2.1 | 6.1 | 12 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| 116-1123232 | 3.2 | 16.7 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 116-1124832 | 3.9 | 24.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| 116-1241632 | 1.0 | 3.1 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| 116-1243232 | 1.6 | 7.5 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1244832 | 2.0 | 12.7 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| 121-1121636 | 4.0 | 9.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 121-1123236 | 4.9 | 19.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 121-1124836 | 5.4 | 28.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| 121-1241636 | 1.9 | 5.0 | 24 | PRO-A04V36A | PRO-A08V48B | CPP-A06V48A | ||
| 121-1243236 | 2.7 | 12.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| 121-1244836 | 3.1 | 20.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 121-1121646 | 4.6 | 15.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 121-1123246 | 5.9 | 26.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| 121-1124836 | 5.9 | 32.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| 121-1241646 | 2.4 | 9.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 121-1243246 | 3.9 | 19.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 121-1244836 | 5.3 | 33.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
Note: PRO-A20V80A maximum peak current = 28.2Arms
| Motor Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| TorquePower - TP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
|
TP23-150A10 | TP23-150A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| TP23-150A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-150A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-150A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-210A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-210A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-210A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-48A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-48A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-48A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-48A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-72A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-72A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TP23-72A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP23-72A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-235A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-235A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-235A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-235A60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
| TP34-420A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-420A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-420A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-420A60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
| TP34-620A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-620A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-620A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP34-620A60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
| TP42-1440A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-1440A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-1440A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| TP42-2100A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-2100A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-2100A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| TP42-810A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-810A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| TP42-810A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| Motor Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| TorquePower Plus - TPP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
|
TPP11M-10A10 | TPP11M-10A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| TPP11M-10A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-10A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-14A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-14A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-14A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-18A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-18A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP11M-18A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| TPP17-29A10 | TPP17M-21A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-29A15 | TPP17M-21A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-29A20 | TPP17M-21A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-47A10 | TPP17M-33A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-47A15 | TPP17M-33A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-47A20 | TPP17M-33A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-58A10 | TPP17M-41A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-58A15 | TPP17M-41A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP17-58A20 | TPP17M-41A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-150A10 | TPP23M-106A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-150A20 | TPP23M-106A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-150A30 | TPP23M-106A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP23-240A10 | TPP23M-170A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-240A20 | TPP23M-170A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-240A30 | TPP23M-170A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP23-90A10 | TPP23M-64A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-90A20 | TPP23M-64A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPP23-90A30 | TPP23M-64A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-1190A20 | TPP34M-840A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-1190A30 | TPP34M-840A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-1190A50 | TPP34M-840A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| TPP34-396A20 | TPP34M-280A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-396A30 | TPP34M-280A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-396A50 | TPP34M-280A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| TPP34-793A20 | TPP34M-560A20 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-793A30 | TPP34M-560A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPP34-793A50 | TPP34M-560A50 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
| Motor Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| TorquePower Enhanced - TPE | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
 |
TPE17-45A10 | TPE17M-32A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| TPE17-45A15 | TPE17M-32A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-45A20 | TPE17M-32A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-63A10 | TPE17M-44A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-63A15 | TPE17M-44A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-63A20 | TPE17M-44A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-78A10 | TPE17M-55A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-78A15 | TPE17M-55A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE17-78A20 | TPE17M-55A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-100A10 | TPE23M-71A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-100A20 | TPE23M-71A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-100A30 | TPE23M-71A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPE23-166A10 | TPE23M-117A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-166A20 | TPE23M-117A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-166A30 | TPE23M-117A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| TPE23-294A10 | TPE23M-208A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-294A20 | TPE23M-208A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| TPE23-294A30 | TPE23M-208A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| Linear Actuator Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| AxialPower Enhanced - APES | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
 |
APES11M-8A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES11M-8A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES11M-8A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES11M-11A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES11M-11A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES11M-11A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES17-45A10 | APES17M-45A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-45A15 | APES17M-45A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-45A20 | APES17M-45A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-63A10 | APES17M-63A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-63A15 | APES17M-63A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-63A20 | APES17M-63A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-78A10 | APES17M-78A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-78A15 | APES17M-78A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES17-78A20 | APES17M-78A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APES23-100A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-100A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-100A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| APES23-100A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| APES23-166A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-166A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-166A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| APES23-166A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| APES23-294A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-294A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APES23-294A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| APES23-294A40 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| Linear Actuator Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| AxialPower Plus - APPS | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
 |
APPS11M-7A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS11M-7A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APPS11M-7A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APPS11M-10A05 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APPS11M-10A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APPS11M-10A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | ||
| APPS17-29A10 | APPS17M-21A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-29A15 | APPS17M-21A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-29A20 | APPS17M-21A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-47A10 | APPS17M-33A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-47A15 | APPS17M-33A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-47A20 | APPS17M-33A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-58A10 | APPS17M-41A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-58A15 | APPS17M-41A15 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS17-58A20 | APPS17M-41A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS23-90A10 | APPS23M-64A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS23-90A20 | APPS23M-64A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS23-90A30 | APPS23M-64A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| APPS23-150A10 | APPS23M-106A10 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS23-150A20 | APPS23M-106A20 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A | |
| APPS23-150A30 | APPS23M-106A30 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
| Linear Actuator Series | Motor P/N | Drive Model | |||
|---|---|---|---|---|---|
| L3 Series | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive |
 |
L3SAF-M200 | L3SAF-M200 | PRO-A04V36A | PRO-A08V48B | CPP-B06V48A |
| L3SAF-M300 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
| L3SAF-M500 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
