MPW52 Wheel Drive
MobilePower™

MPW52 Wheel Drive

Summary Details

Size: 52mm brushless DC gear motor, 150mm wheel
Peak Torque: 12.4 Nm (109.75 lb.in)
Maximum Load: 68 Kg (150 lbs.) per wheel
Rated Speed: 2.4 meters/second
MPW52 Thumbnail
MPW52 Thumbnail
MPW52 Thumbnail
MPW52 Thumbnail
MPW52 Thumbnail
MPW52 Thumbnail
Buy Now

Introducing ElectroCraft's new MobilePower™ MPW52 wheel drive, featuring a high torque-density brushless DC motor with integrated single-stage planetary gearbox and wheel assembly.

ElectroCraft's MPW52 integrates a 14-pole Brushless DC motor with a heavy-duty, single-stage planetary gearbox mounted inside the hub of an aluminum wheel with polyurethane tread. Designed for mobile platform traction systems with optional encoder feedback to support positioning capability and electromagnetic brake to hold position when power is removed. The MPW52 combines optimum performance with high-efficiency, quiet operation and long life.

ElectroCraft MobilePower™ MPW series wheel drives feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox/wheel combinations. As with all ElectroCraft products, the MPW series wheel drives are customizable to meet specific application requirements.

Features:

  • Smooth, efficient motion
  • Compact, lightweight, durable and highly reliable integrated design
  • Powerful starting torque:
    • Peak torque up to 12.4 Nm
    • Continuous torque up to 6.1 Nm
  • Configurable or completely customizable designs
    • Motor, gearbox, wheel, brake, encoder, cabling
  • Typical applications:
    • Automated Guided Vehicles
    • Autonomous Mobile Robots

For a complete solution, the MPW52 is compatible with ElectroCraft's Universal and PRO Series drives.

MPW52 Model Number Legend

Additional Product Details

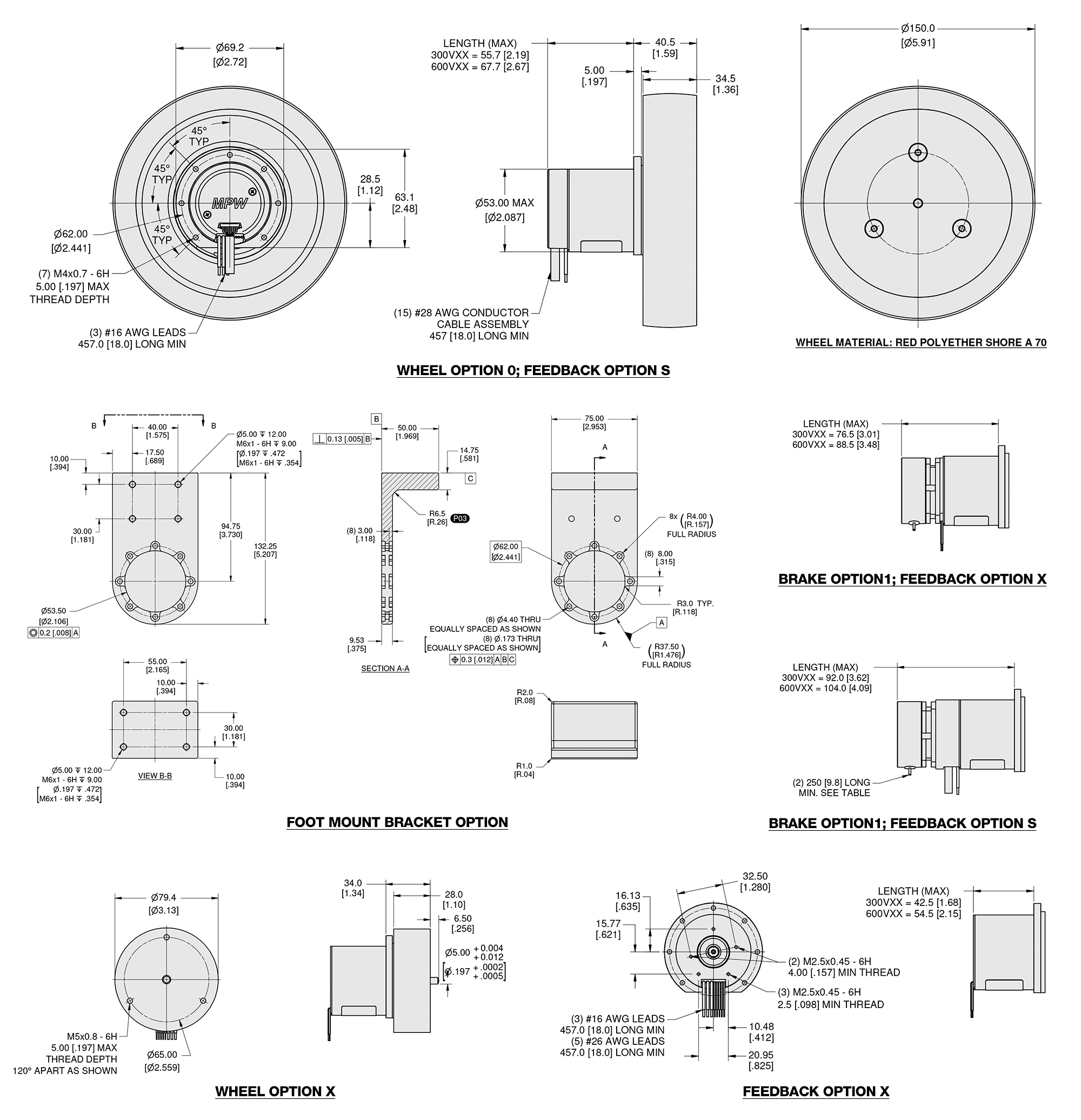

MPW52 Outline Drawing

Technical Drawings

MPW52 Mechanical / Winding Data

MPW52 Wheel Drive Motor Stack Size & Winding Models
Specifications MPW52-300V24 MPW52-300V48 MPW52-600V24 MPW52-600V48
Design Voltage (VDC) 24 48 24 48
Gear Ratio 9.00:1
Peak Torque (lb-in) 60.2 109.75
Peak Torque (Nm) 6.8 12.4
Peak Current (Amps) 17.4 8.6 26.5 12.9
Peak Power (Watts) 80 170
Continuous Stall Torque* (lb-in) 30.1 54.0
Continuous Stall Torque* (Nm) 3.4 6.1
Continuous Stall Current (Amps) 6.4 3.4 11.4 5.6
Continuous Torque at Rated Speed* (lb-in) 23.0 39.8
Continuous Torque at Rated Speed* (Nm) 2.6 4.5
Continuous Current at Rated Speed (Amps) 5.0 2.5 8.4 4.2
Continuous Power at Rated Speed (Watts) 75 143
Continuous Rated Wheel Speed (RPM) 278 300
Continuous Rated Wheel Speed (Meters/Sec) 2.2 2.4
Continuous Rated Wheel Speed (Feet/Sec) 7.2 7.7
Continuous Rated Wheel Speed (KPH) 7.9 8.5
Continuous Rated Wheel Speed (MPH) 4.9 5.3
Standard Wheel Diameter (mm) 150
Wheel Type / Hardness Aluminum Hub with PTMEG POLYETHER Shore A 70 (Red)
Maximum Axial Load (Kg) 22.7
Maximum Axial Load (lbs) 50
Maximum Radial Load (Kg) 68.0
Maximum Radial Load (lbs) 150
Peak Acceleration at Full Radial Load (m/s²) 2.7 5.0
Peak Efficiency (%) 75.0 80.0
Backlash (degrees) <1 deg
Service Life (hours) 20,000
Gear Motor Voltage Constant (V / kRPM) 98.4 196.9 103.6 207.2
Gear Motor Torque Constant (oz-in / Amp) 72.9 145.8 76.8 153.5
Gear Motor Torque Constant (Nm / Amp) 0.51 1.03 0.54 1.08
Motor Winding Resistance (Ohms) 0.74 2.66 0.28 1.16
Motor Winding Inductance (mH) 0.70 2.80 0.33 1.32
Motor Constant (oz-in / √ Watt) 9.4 9.9 16.1 16.1
Motor Constant (mNm / √ Watt) 66.3 70.2 113.6 113.6
Motor Electrical Constant (msec) 0.9 1.1 1.2 1.1
Motor Mechanical Constant (msec) 1.70 1.11
Motor Thermal Time Constant (sec) 1,200.0 1,240.0
Motor Rotor inertia (oz-in²) 0.3390 0.5631
Motor Rotor inertia (g-cm²) 62.0 103.0
Motor Thermal Resistance (C / Watt) 2.79 2.32
Number of Motor Poles 14.0
Total Weight - no wheel (lb) 2.8 3.1
Total Weight - no wheel (Kg) 1.25 1.41
Total Length - w/out encoder & brake (inch) 3.3 3.7
Total Length - w/out encoder & brake (mm) 83 95
Storage Temperature -40C to 60C
Certifications CE, RoHS

Notes:

*Continuous rating based on a 25°C ambient temperature, winding temperature rise of 125°C. Mounted on a 150 X 150 X 6 mm aluminum heat sink.

MPW52 Speed / Torque Curves

MPW52-300 Performance Chart MPW52-600 Performance Chart

MPW52 Connection

hall diagram

MPW52 CAD
