APES17 Stepper Linear Actuator
AxialPower™ Enhanced Series

APES17 Hybrid Stepper Linear Actuator

Summary Details

Technology: Stepper
Size: NEMA 17
Force: 107 N (24 lbs.) to 1001 N (225 lbs.)
APES17 Thumbnail 1
APES17 Thumbnail 2
Buy Now

The APES17 is a 42mm / NEMA 17 frame, hybrid stepper-based actuator. The APES17 is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.050 mm per step, with an output force of up to 1001 N (225 lbs.) ElectroCraft's unique motor, shaft and insert designs offer industry-leading output force per frame size while providing superior precision, speed and efficiency.

APES17 Model Number Example

APES17 Model Number Example

Additional Product Details

APES17 Outline Drawing

Model Number Length Mounting Threads
APES17(M)-35V 1.42 inch
(36.1 mm)		 4-40 UNC-2B
(M3 x 0.5 - 6H)
APES17(M)-45A
APES17(M)-48V 1.62 inch
(41.1 mm)
APES17(M)-63A
APES17(M)-60V 1.93 inch
(49.1 mm)
APES17(M)-78A
Technical Drawings

APES17 Speed / Force Curves

APES17-45A10 Speed - Force Curve APES17-45A15 Speed - Force Curve APES17-45A20 Speed - Force Curve APES17-63A10 Speed - Force Curve APES17-63A15 Speed - Force Curve APES17-63A20 Speed - Force Curve APES17-78A10 Speed - Force Curve APES17-78A15 Speed - Force Curve APES17-78A20 Speed - Force Curve

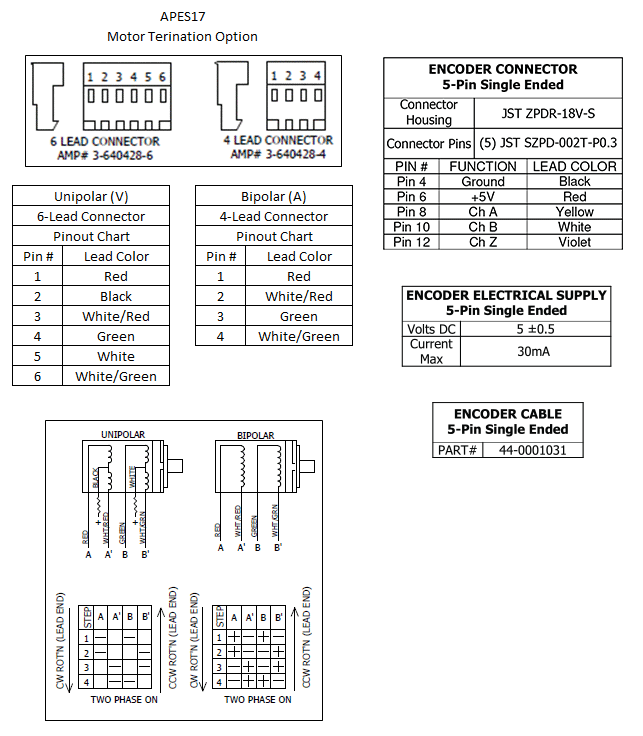

APES17 Connection

hall diagram

APES17 CAD
